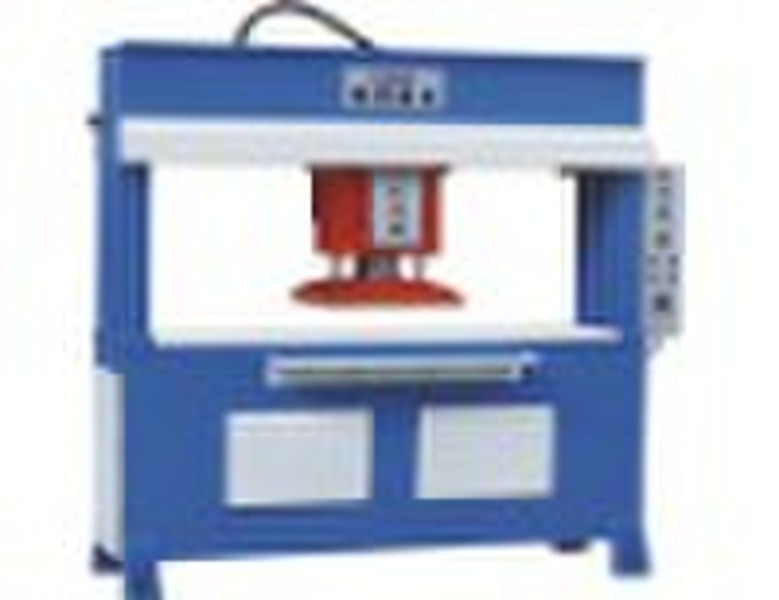

Hydraulic Traveling Head Cutting Machine

XYJ-1/25 Hydraulic Travelling Head DieCutting MachineUsage and characteristics 1. This machine is mainly suitable for cutting varieties of leather,rubber, plastic, fabric, etc with a blade of fixed shape. 2. Gantry frame structure is adopted, with high intensity and without deformation. 3. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation. 4.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency. 5.The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact. 6. Differential oilway is adopted to allow rapid and convenient cutting. 7.An automatic feeding equipment can be added optionally to improve work efficiency. Main technical parameters ModelXYJ/A250XYJ/A250AXYJ/A250BXYJ/A500XYJ/A500AXYJ/A500BMaximum cutting force250KN250KN250KN500KN500KN500KNWorking table(mm)1600*5001800*5002000*5001600*5001800*5002000*500Travel head size(mm)500*500500*500500*500550*550550*550550*550Adjustable stroke (mm)5-1505-1505-1505-1505-1505-150Motor power2.2KW2.2KW2.2KW4.0KW4.0KW4.0KWMachine dimensions(mm)2200*720*20002400*720*20002600*720*20002200*720*20002400*720*20002600*720*2000G.W1600kg2100kg3000kg3000kg3800kg5000kgRemark:We can make the machine according to your specifical order ,for example the color,the motor information ,the working table etc.
